Double Acting High Tonnage Pull Cylinder

Short Description:

Matched the use with electric hydraulic pump   Product Features Double acting, hydraulic return Pull type design, suitable for stretching and folding operation. Both ends with earrings, easy to connect with the object. Built in safety valve to prevent over pressure. Scraper seal reduces contamination, extending cylinder life. Optional lifting valve group, to ensure the safety and steady of lifting. 3/8 “- 18NPT coupler and dust cap included on all models.   Technical Parameter...


Product Detail

Product Tags

Matched the use with electric hydraulic pump



Product Features

Double acting, hydraulic return

Pull type design, suitable for stretching and folding operation.

Both ends with earrings, easy to connect with the object.

Built in safety valve to prevent over pressure.

Scraper seal reduces contamination, extending cylinder life.

Optional lifting valve group, to ensure the safety and steady of lifting.

3/8 “- 18NPT coupler and dust cap included on all models.



Technical Parameters

Model

Capacity

Stroke

Max. Capacity

Effective

Area

   Oil Capacity

Coll. Height

Outside Diameter

Weight

Ton

mm

Push(kN)

Pull(kN)

(cm2)

(cm3)

(mm)

(mm)

(kg)

KET-BRL-252

25

50

533

264

37.8

380

265

130

21.1

KET-BRL-254

100

533

264

37.8

761

315

130

24.8

KET-BRL-256

150

533

264

37.8

1141

365

130

28.5

KET-BRL-258

200

533

264

37.8

1522

415

130

32.2

KET-BRL-2510

250

533

264

37.8

1902

465

130

35.9

KET-BRL-2512

300

533

264

37.8

2283

515

130

40.5

KET-BRL-502

45

50

932

433

61.8

665

183

165

45.2

KET-BRL-504

100

932

433

61.8

1331

233

165

51.1

KET-BRL-506

150

932

433

61.8

1996

283

165

57.0

KET-BRL-508

200

932

433

61.8

2662

333

165

62.9

KET-BRL-5010

250

932

433

61.8

3327

570

165

68.8

KET-BRL-5012

300

932

433

61.8

3993

433

165

74.7

KET-BRL-702

70

50

1386

667

95.3

990

200

205

73.1

KET-BRL-704

100

1386

667

95.3

1979

250

205

82.3

KET-BRL-706

150

1386

667

95.3

2969

300

205

91.4

KET-BRL-708

200

1386

667

95.3

3959

350

205

100.6

KET-BRL-7010

250

1386

667

95.3

4948

400

205

109.7

KET-BRL-7012

300

1386

667

95.3

5938

450

205

118.9

KET-BRL-1002

100

50

2563

1064

152.0

1830

275

275

162

KET-BRL-1006

150

2563

1064

152.0

5491

375

275

198

 KET-BRL-10012

300

2563

1064

152.0

10983

525

275

251

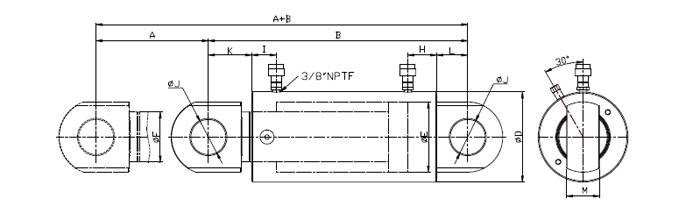

示意图
