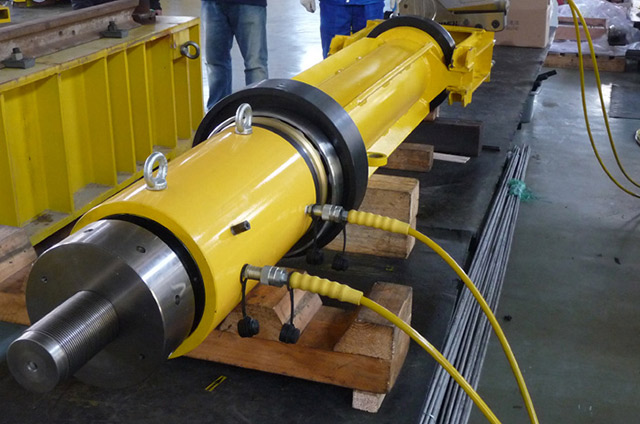

Double Acting Hollow Plunger Hydraulic Cylinder

Short Description:

Product Descriptions Double acting hollow plunger hydraulic cylinder also called tensioning cylinder, cross-core cylinder  and hollow plunger cylinder, the operation is convenient and the service life is long, widely used in prestressed construction, bridge building, highway and railway construction, power plant power station building, equipment lifting, mechanical disassembling, etc.. The center hole can provide the steel strand, the steel bar and so on through, the center aperture can be pr...


Product Detail

Product Tags

Product Descriptions

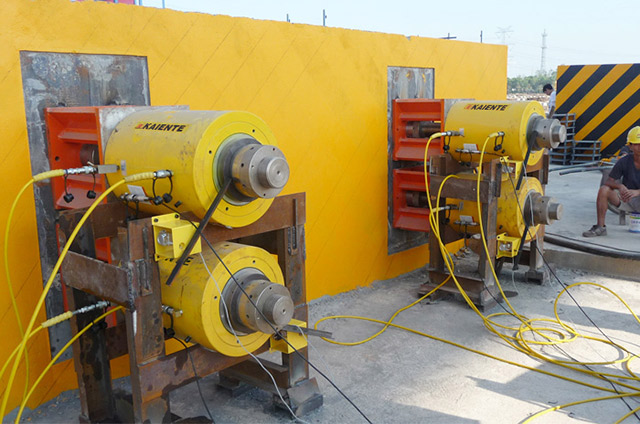

Double acting hollow plunger hydraulic cylinder also called tensioning cylinder, cross-core cylinder  and hollow plunger cylinder, the operation is convenient and the service life is long, widely used in prestressed construction, bridge building, highway and railway construction, power plant power station building, equipment lifting, mechanical disassembling, etc..

The center hole can provide the steel strand, the steel bar and so on through, the center aperture can be processed according to the use unit needs.

Double acting hollow plunger hydraulic cylinder is applied to long distance stroke, at the same time, the hydraulic traction force produced by the piston can be fully utilized in the recovery of the piston operation. Hollow plunger design, which can produce both pushing and pulling force, the design of the double action can be quickly retracted and accurately control the return distance.

Product Features

Double acting operation for fast retraction

Relief valves prevent damage in case of over-pressurization

Plunger wiper reduces contamination, extending cylinder life

The hydraulic cylinder test method conforms to the national standard GB/T 15622-2005

Built-in scraper seal reduces contamination, extending cylinder life

3/8 “- 18NPT coupler and dust cap included on all models.

Technical Parameters

Model Capacity

Max. Working

Pressure

Closed

Height

Stroke

Capacity

 (kN)

Outside

Diameter

Plunger

Diameter

Central Hole

Diameter

Weight



(T)

(MPa)

(mm)

(mm)

Spread

Collapse

(mm)

(mm)

(mm)

(kg)

KET-RRH-307

30

70

330

178

326

213

114

63.5

33.3

21

KET-RRH-3010

431

258

27

KET-RRH-603

60

70

247

89

576

380

159

91.9

53.8

28

KET-RRH-606

323

166

35

KET-RRH-6010

438

257

45

KET-RRH-1001

100

70

165

38

931

612

212

127

79.2

33

KET-RRH-1003

254

76

91

KET-RRH-1006

342

153

79

KET-RRH-10010

460

257

106

KET-RRH-1508

150

70

349

203

1429

718

247

152.4

79.2

111

KET-RRH-20010

200

70

523

250

2028

933

300

203

110

208

KET-RRH-20012

573

300

226

KET-RRH-60012

600

70

700

300

5982

2873

495

305

140

800

2                1
