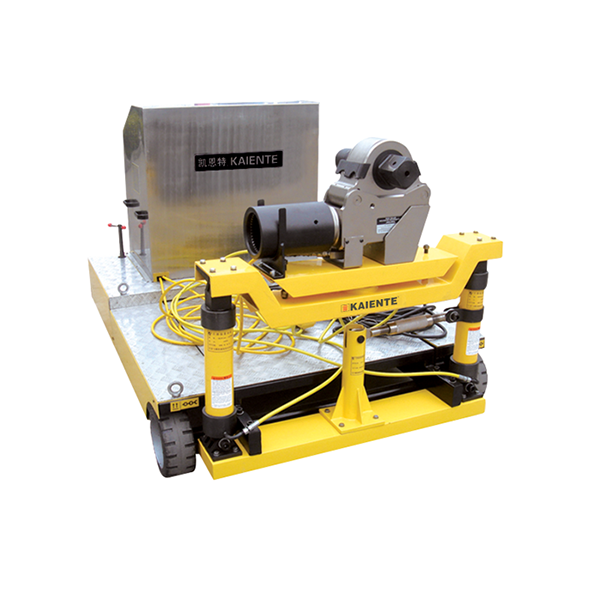

Automatic Vehicle Hydraulic Torque Wrench

Short Description:

Product Descriptions The fully automatic vehicle hydraulic torque wrench is designed specially for the assembly and disassembly of turbine runner blade bolt in hydraulic power plant. It replaces the manual tap wrench, driving traction and other installation and disassembly modes. Reduce the labor intensity and eliminate the hidden danger, to achieve the purpose of fast, light and flexible disassembly. Fully automatic vehicle hydraulic torque wrench is a special hydraulic equipment for tighten...


Product Detail

Product Tags

Product Descriptions

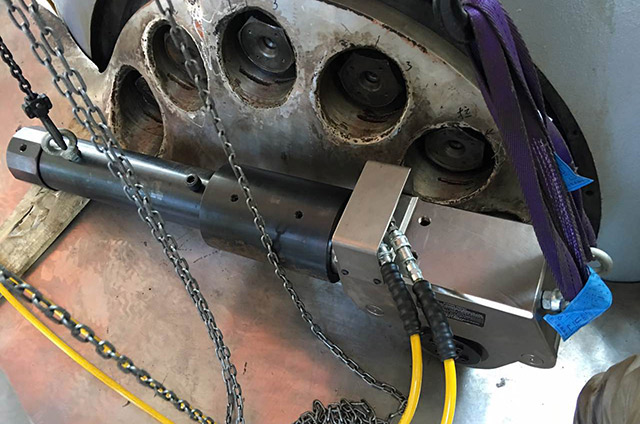

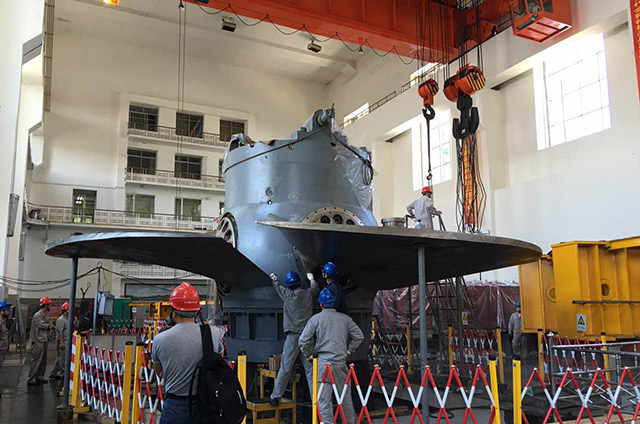

The fully automatic vehicle hydraulic torque wrench is designed specially for the assembly and disassembly of turbine runner blade bolt in hydraulic power plant. It replaces the manual tap wrench, driving traction and other installation and disassembly modes. Reduce the labor intensity and eliminate the hidden danger, to achieve the purpose of fast, light and flexible disassembly. Fully automatic vehicle hydraulic torque wrench is a special hydraulic equipment for tightening and loosening bolts. It has the characteristic of fully closed overall frame structure, torque accuracy ±3%, 360 degree swivel quick coupler, double acting, high speed, high degree of rotation angle and so on .

Technical Parameters

Model KET-QZD-11000
Motor power 0.75KW  (24V)  /
Travel speed 0~80( m/min)
Battery power 120Ah  24V
Displacement stroke of mobile station 0~500(mm)
Lifting height of mobile support platform 0~700(mm)
Swing angle of mobile support platform ±15°
Hydraulic motor torque 465N.m(10MPa)
Hydraulic wrench torque 110000N.m
Motor power 380V/50Hz 3KW 1400rpm
Working pressure Low pressure:20Mpa High pressure:70Mpa
Dimensions 2170mm×1560mm×870mm
